Nylon Braided Hose
Details

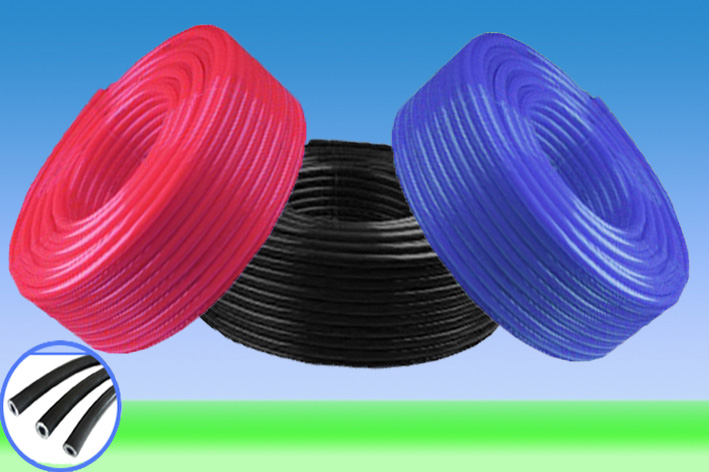

  Nylon   Nylon Braided Hose

Product Characteristic:

Bears mant kinds of chemical substances erode.

Good wearability;High strength working pressure and bursting
  pressure.

The surface is smooth,the size is stable.

The penetration coefficieent is small,can precent to rust
  and silts up.

The resistance is enprmous,may see as insulator.

The service life is very long,even several dozens years.

The heat resistance is good,may work under enviroment—40℃—

  +100℃。

The joint type with can macth:the sleeve chuck type,the
  bamboo nobe type,the with hold type and the quick insert type.

Many colors for choice,for easy pipeline recognition.

Conform to the ROHS environmental protection requirement.



Product Use:

Passenger vehicle,light trucks hydraulic brake pipeline.

Automobiles power steering pipeline.

The hydraulic feeds and the control system of the forklift,

loads vehicle,excavator,hoist crane and other engineering
  machinery.

Ships hydraulic control system.

Drive and control system of machine tool,lift table and
  other equipments.

Paint,liquid state resin high-pressured spray coating
  pipeline.

Air-conditioning system.



Construction:

Tube inner layer:Nylon(resist compression)

Tube middle-layer:Polyseter line(reinforce) or steel wire

Tube outer-layer:Polyurethane(wear-resisting)





Datasheet:



Item No.



Metric Measurement

Working

Pressure

Disruptive

Pressure

Bevelling

Radius

I.D.

O.D.

mm

mm

Kgf/cm2

Kgf/cm2

mm

NYB10.2×4.8

4.8

10.2

205.0

610.0

35.0

NYB11.2×6.0

6.0

11.2

195.0

590.0

      40.0

NYB12.0×6.4

6.4

12.0

190.0

570.0

      40.0

NYB14.2×8.0

8.0

14.2

170.0

510.0

      60.0

NYB16.6×9.6

9.6

16.6

155.0

470.0

      80.0
