PA12-V2 Tubing
Details

 Corrugated Pipe  Polyamide 12 Tubing

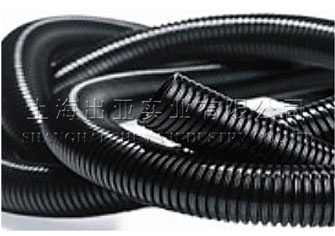

Polyamide 12——V2 Corrugated Pipe



Product Characteristic:

Properties flexilble and excellent tenacity;medium wall thickness,
  glossy surface;wind resistant.

High mechanical strength,resistant to oil,acid and solvents;anti-friction,excellent UV-resistant,
     self-extinguishing,External
 instaliation,free  of  halogen,phosphor  and  canmuun.

Passed ROHS;we have got railway certificates of japan,france and
  germany.




Product Use:

Mechanical building,heavy equipment,electric factory,underground
  electric vehicle building etc.




Specifications:

Material:Polyamide 12

Color: Grey(RAL 7037),Black(RAL 9005)

Working temperature range:Min -50℃,Max +100℃,Short-temp
  approximately+150℃

Flame-resistant degree:V2(UL94),According to FMVSS 302,
  self-extinguishing, type B

Protection degree:IP68

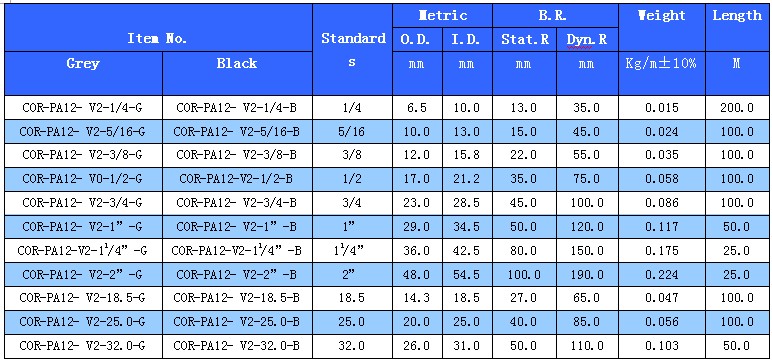

Datasheet:
